Caratteristiche

Specificazioni

Application: Laser Marking

Working Accuracy: 0.01mm

Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP

Laser Type: Fiber Laser

Condition: New

CNC or Not: Yes

Cooling Mode: Air Cooling

Laser Source Brand: Optional

Weight (KG): 150 KG

Key Selling Points: High-accuracy

Warranty: 1 Year

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Advertising

Marking Area: 110mm*110mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: laser source

Wavelength: 1064nm

F-theta lens: quality import ZnSe material

Laser Repetition Frequency: 25KHz-400KHz

Min Line Width: 0.03mm

Marking Speed: â‰¤8000mm/s

Gross Power: <500W

Power Supply: AC110/220V(Â±10%),50/60Hz

Repetition Precision: 0.01mm

Marking Depth: â‰¤0.3mm

Beam Quality: <1.6M2

Certificazione: ce, ISO, Sgs

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Viet Nam, India, Mexico, Thailand, Malaysia

Showroom Location: Malaysia

Marketing Type: Ordinary Product

Informazioni di base

Certificazione: ce, ISO, Sgs

Termini di pagamento e spedizione

Packaging Details: Standard export wooden box

Supply Ability: 3 Set/Sets per Week

Descrizione di prodotto

Product Description

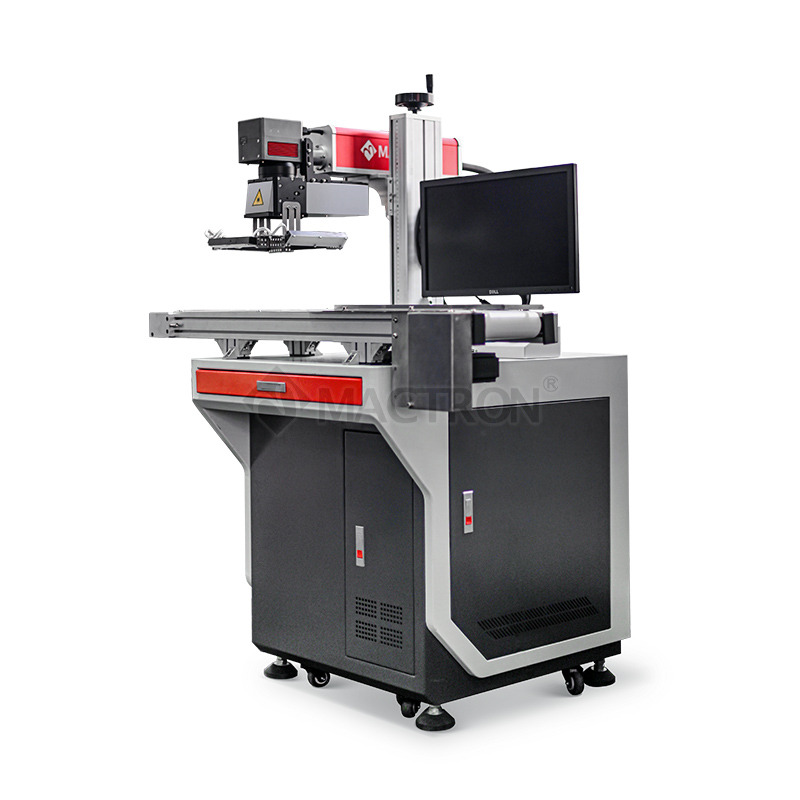

MT-F series standard fiber laser marking machine is with high quality and high performance. based on the needs of domestic and foreign markers,and are equipped with core optical device, including fiber lasers and scanning galvanometer from some internationally prestigious brands. They enhance the performance and stability and greatly lower the failure products. Marking has no-touched process, permanent effect, humanized operation, and stable running, lifetime up to 100,000 hours. The machine is armed with our self-developed high-speed marking control card and powerful software, compatible software output of Auto CAD, CoreIDRAW, AI etc. It can realize automatic edition and correction of characters, signs, graphs images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TTF fonts directly 24-hour non-stop running makes it meets the demand of massive no-line and off-line industrialized production. It satisfies various industries high demand of marking application. Including laser marking on materials metal, plastic and food beverage packages etc.

Model	MT-F30
Peak Laser Power	30W
Wavelength	1064nm
Processing Area	7070MM/110110MM/175175MM/300300MM(Optional)
Frequency Range	20-200Khz
Beam Quality	<1.6M2
Laser Source Lifetime	100000h
Marking Speed	<8000MM/S
Marking Depth	≤2MM
Repetition Precision	0.01MM
Min.Line Width	0.01MM
Min.Character	0.2MM
Cooling Mode	Air Cooling
Lifting Height	100-500MM(700MM)Optional
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10℃-40℃
Warranty	1 Year
Humidity	5% to 85% (Free of Condensed Water )
Gross Power	<500W
Power source	AC110V/220V± 10%, 50/60HZ

Detailed Images

Why Choose Us

Sample Figure

Mactron's mainly product is including:

Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.

Mactron Technology's business tenet is "Do Honest Business ". Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"

FAQ

Q: What's working area of our fiber laser marking machine? A: Our standard size is option. Q: What's the laser power of your fiber laser marking machine? A: We have laser power from 10-200w, able to different metals with varied thickness. Q: What's delivery time? A: Generally speaking, lead time is 7-10 working days after receiving the payment. Q: How is your packing? A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag. Q: How to operate the fiber laser engraving marking machine? Is training necessary? A: The machine is mainly controlled by software. It's very easy, not complicated. We can teach on the Internet. Generally speaking, an operator, who is not familiar with Metal Engraving Machine Laser Engraving before, can still operate it very well. According to customers' requests, we can send our technician to customers' factory for machine training or customers can come to our factory for machine training if needed. Q: Which countries are your laser machinery sold to? A: Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
